Attachment Manager for Frappe
Every file on a Frappe form in one panel: preview 40+ file types in place, annotate PDFs, and require documents before Submit.
Frappe v16





Overview
Attachment Manager replaces the attachment footer in Frappe forms with one panel for every file on the document: grid and list views, search, sort, type filters, favourites and bulk actions. Files open in a preview inside the form, PDF annotation included, and render in the browser, so there is no conversion service to run. Rules make an attachment type required on Save or Submit, put a checklist on the form, and lock the files once the document is submitted. Built for Frappe v16; ERPNext is optional.
40+file types open in the form, nothing to download
4PDF annotation tools: highlight, text, draw, image
5bulk actions on selected files: zip, private, public, type, delete
2checkpoints for required documents: Save and Submit
Features
Views and search

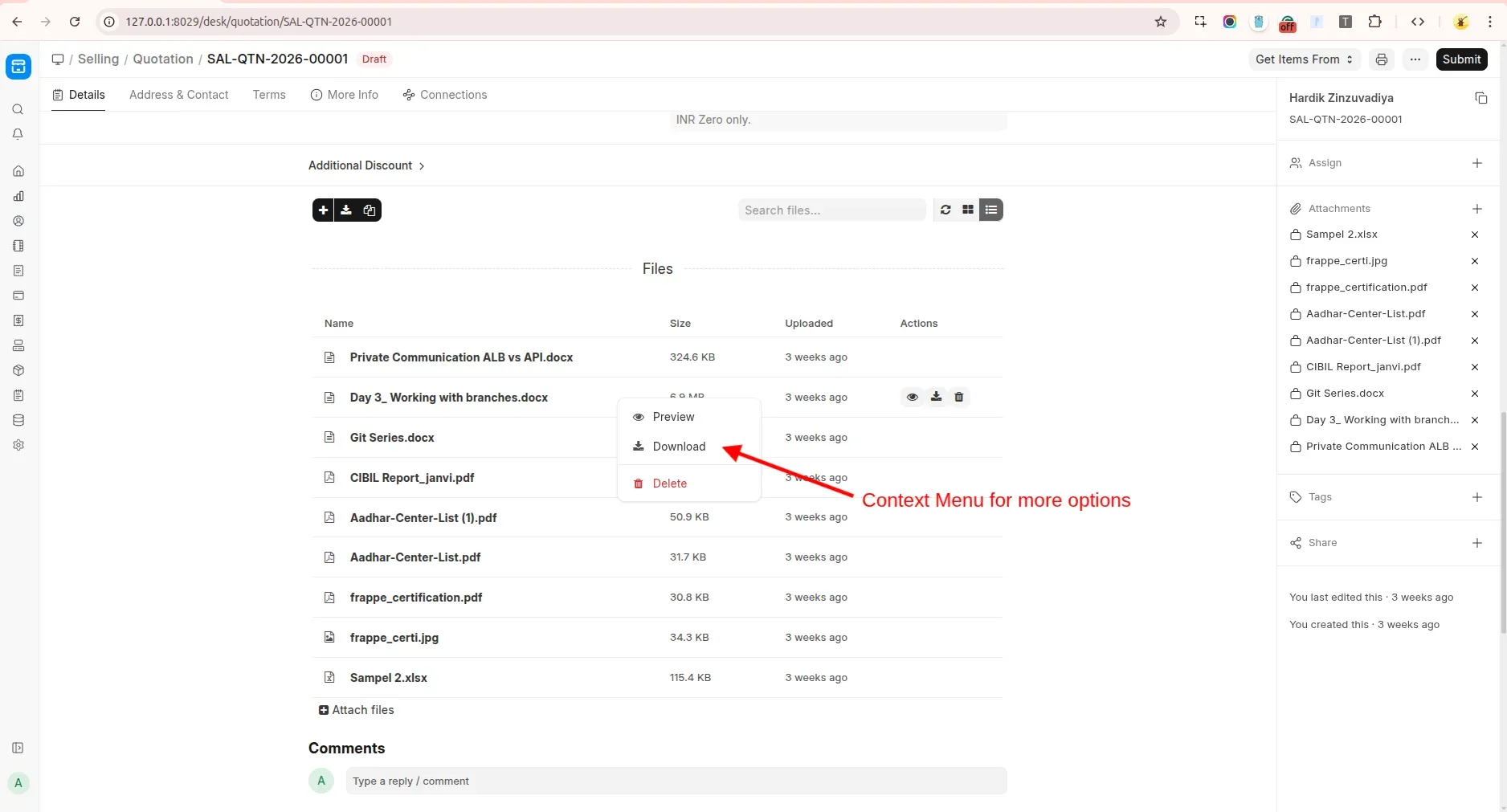

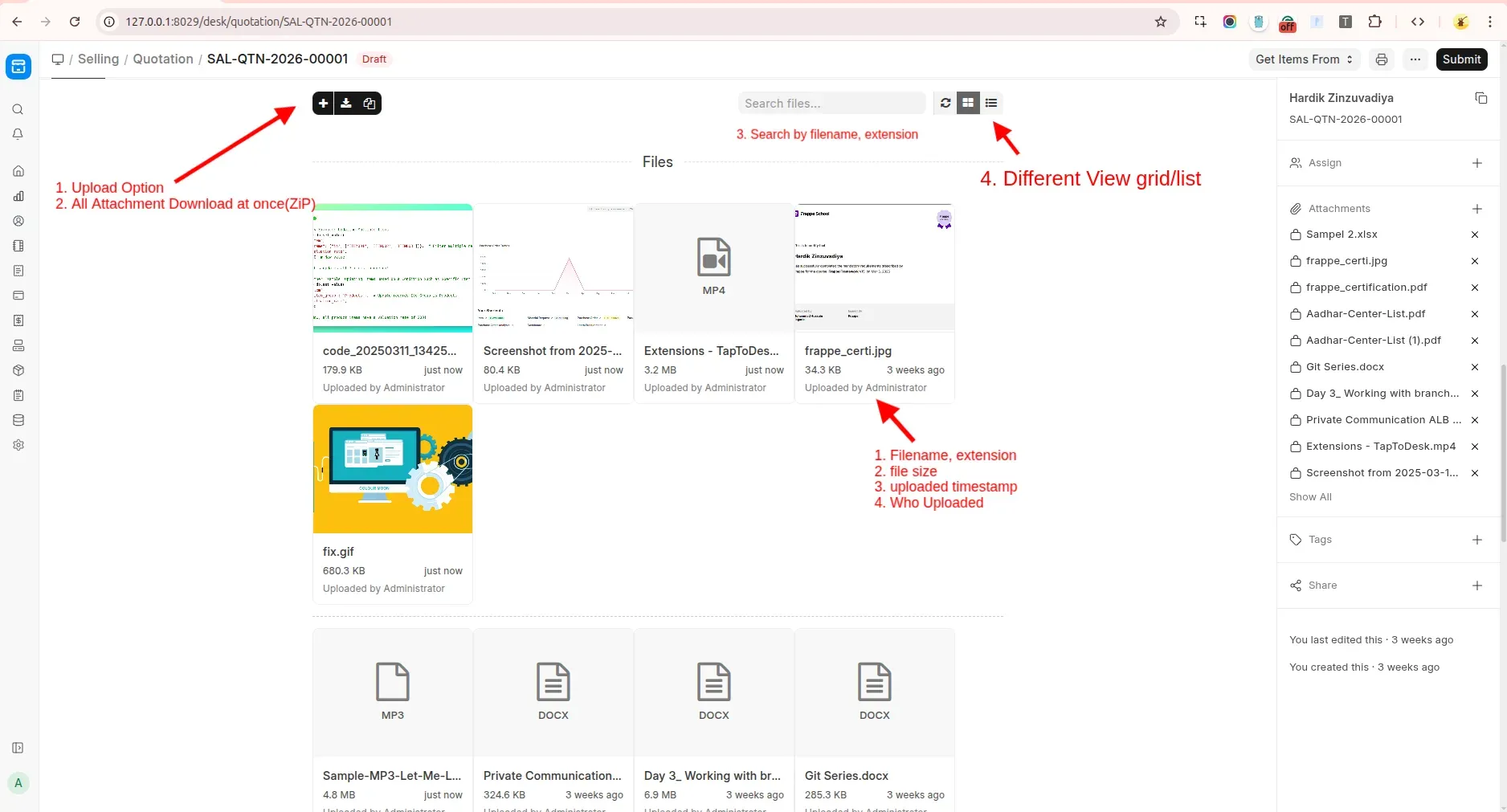

- Grid and list views
- Search, and sort by newest, oldest, name or size
- A type chip on each file, and a filter by attachment type
- One-click favourites, with a favourites filter
File actions and bulk control

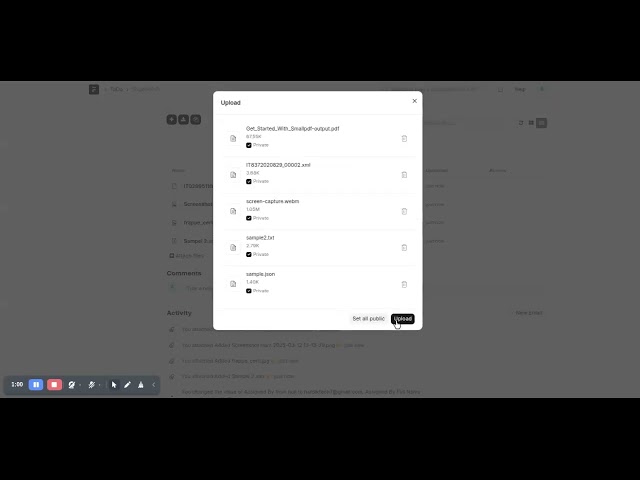

- Drag and drop upload, choose an existing file, or add a link with a label
- Rename a file and keep its extension; make it private or public
- Select all, then download as a zip, change privacy, set the type or delete
- Users without write access can view and download, not change
Document preview

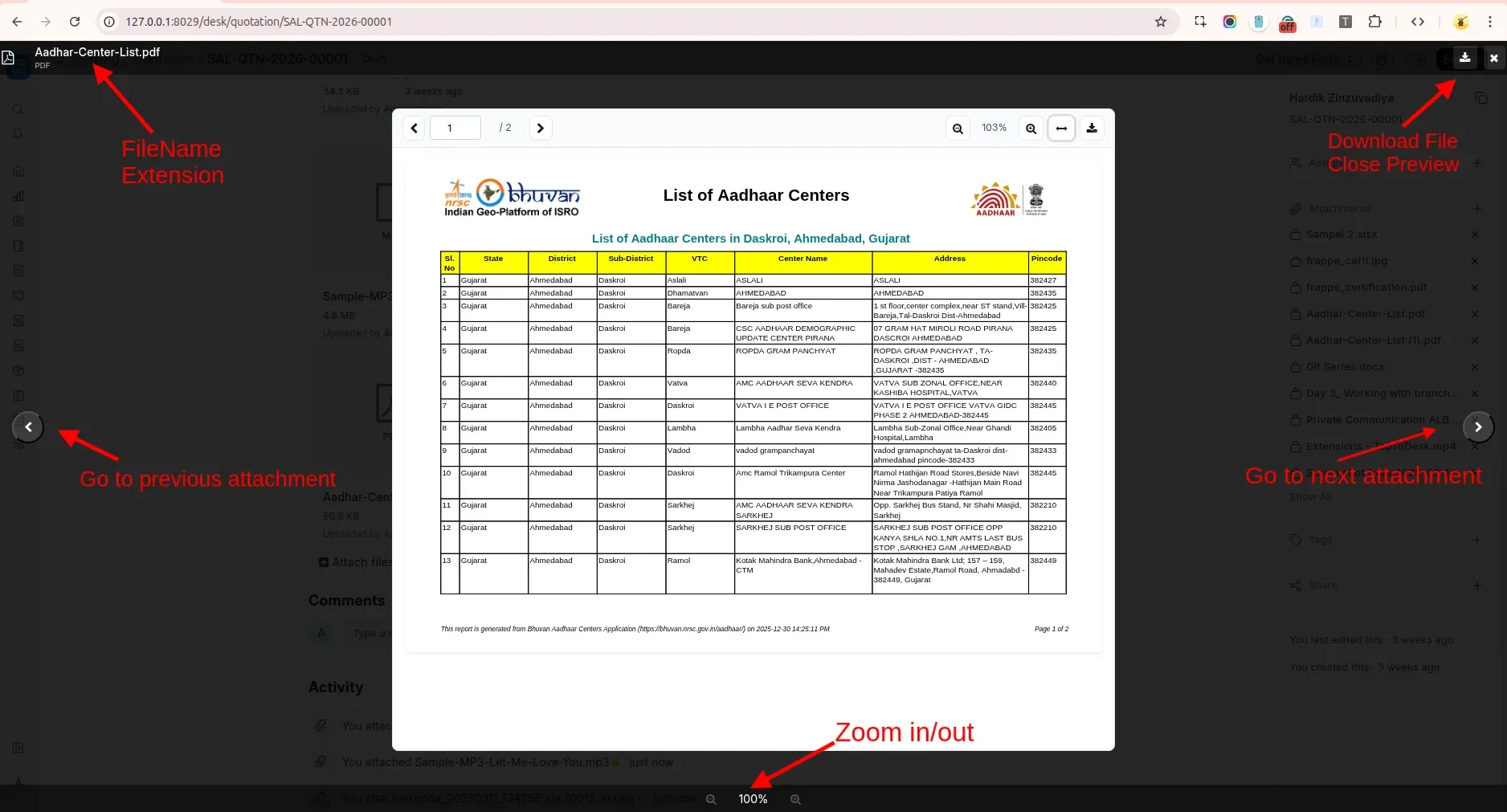

- PDF with page navigation, zoom, fit and find in document
- PDF annotations: highlight, text, draw or image, saved in place or as a copy

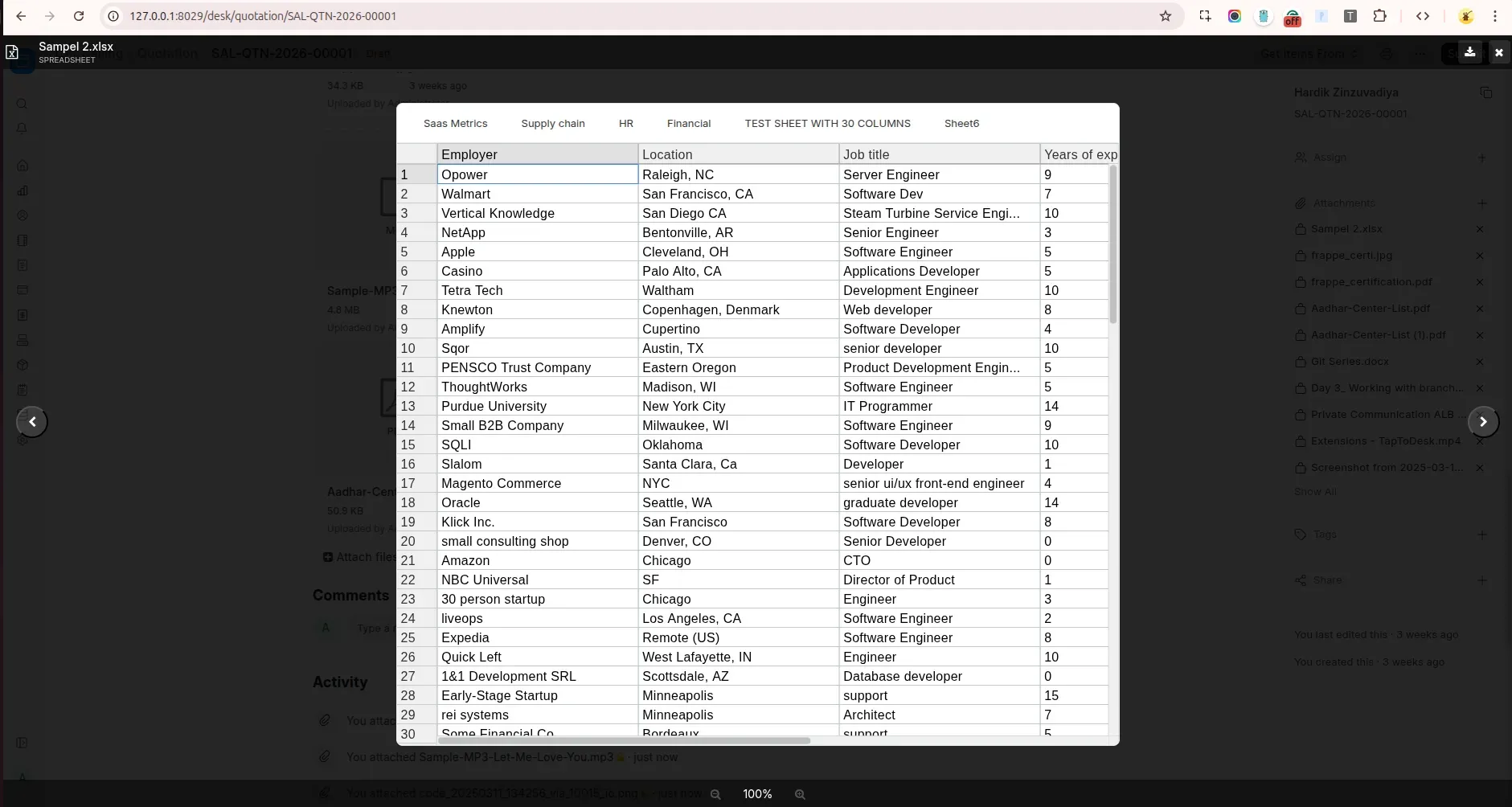

- DOCX, plus XLSX and CSV with sheet tabs
- Text and code, read-only, with line numbers
Images and media
- Image zoom around the cursor with Ctrl + wheel, then drag to pan
- Audio, video and SVG in the preview
- Arrow keys move between files, Esc closes
Required documents
- Attachment types label what a file is: contract, certificate, drawing
- Rules make a type required on a DocType, on Save or on Submit
- An optional Python condition per rule, e.g. doc.grand_total > 10000
- A checklist on the form with Upload and Choose existing
- Attachments locked once the document is submitted
Integrations
- Optional Open in OnlyOffice when that app is installed
- Replaces the attachment footer on business forms; Settings pages keep Frappe's own list
- Installs with bench get-app
Technical details
- Tested on
- Frappe v16
- Built with
- Frappe, Python, React, Tailwind CSS, shadcn/ui, pdf.js, docx-preview, xlsx, canvas-datagrid, CodeMirror
- Type
- product
- Status
- In production
